220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

Introducing our {220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor}. As a factory, we provide high-quality industrial equipment for all your production needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Packaging & Shipping
  • Successful cases
  • Company Profile
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
RK220APMII
Cooling System
Air Cooling
Power Source
AC Power
Cylinder Position
Angular
Structure Type
Closed Type
Installation Type
Movable Type
Type
Twin-Screw Compressor
Air Delivery
22.5~33m3/Min
Rated Exhaust Pressure
7~13bar
Power
160kw/220HP
Cooling Method
Air Cooled
Weight
4300kg
Airend
Baosi/Jiuyi
Inverter Brand
Inovance
Motor Protection Class
IP54/IP55
Motor Energy Efficiency Class
Ie4
Oil Content
Less Than 0.03ppm
Transport Package
Wooden Box
Specification
3000x1900x1950mm
Trademark
Rocky
Origin
Shanghai, China
Production Capacity
10000set/Month

Product Description

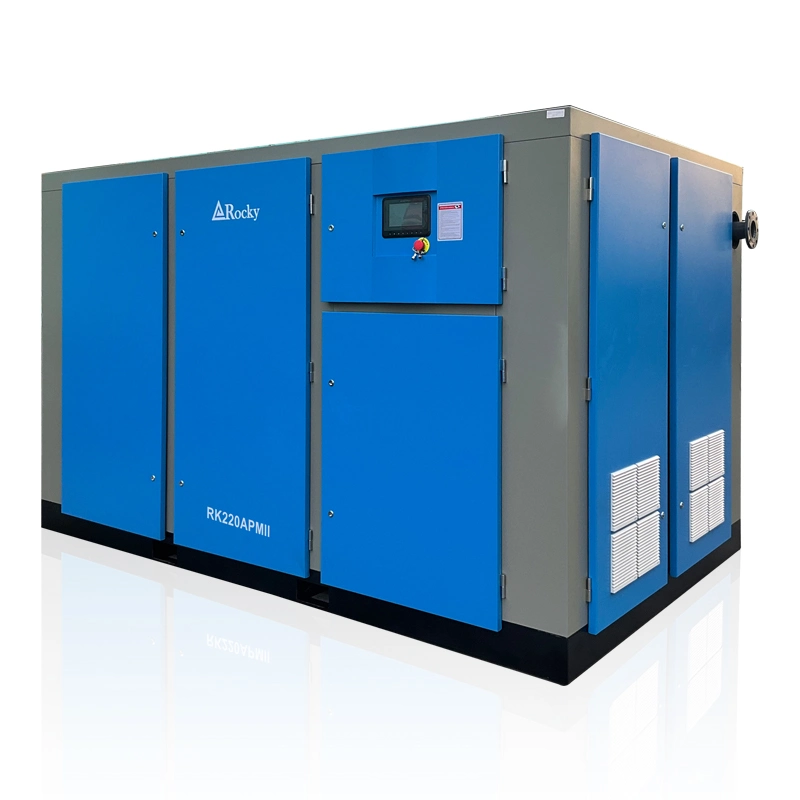

220hp 160kw 380V/50hz/3ph PM VSD Two Stage Screw Type Air Compressor
Model:RK220APMII
Air delivery:22.5~33m3/min
Pressure:7~13bar
Air end:Hbanbell/BAOSI
Electric motor: PM VSD 220hp 160kw 380V/50hz/3ph
Control: automatic PLC controller
Driven: direct driven, elastic coupling
Cooling: by air
Starting: Frequency conversion start
Discharge temperature: less than ambient +8 ºC
Noise: less than 78 dB(A)
Air outlet size: DN80"
Dimension: 3000x1900x1950mm
Weight: 4300kg
220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

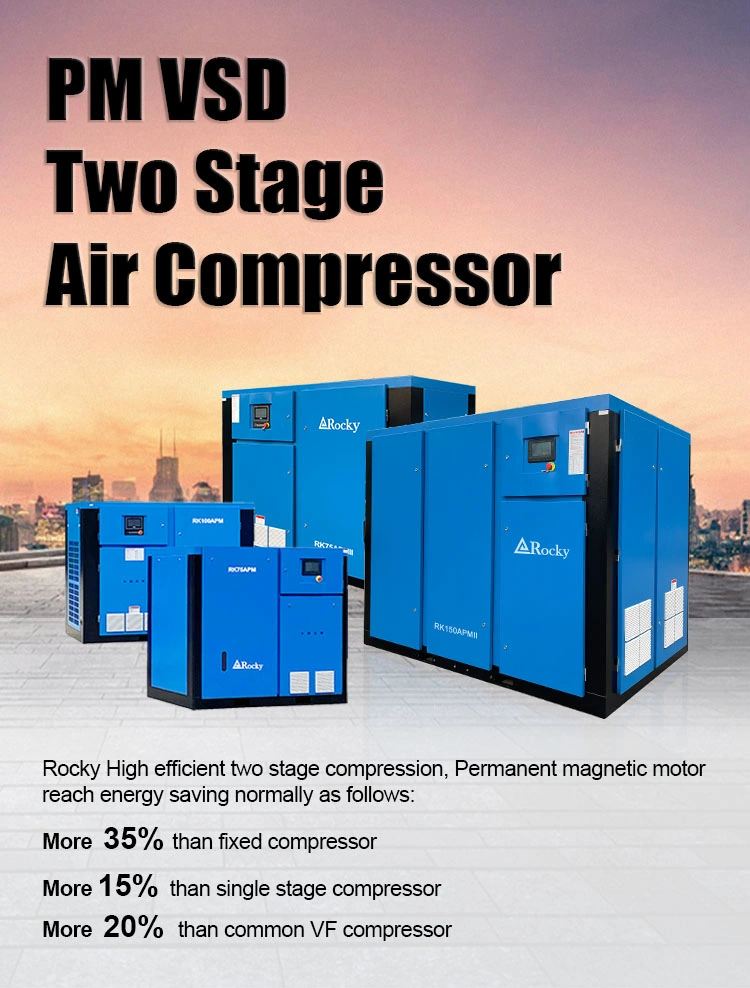

Permanent magnet variable frequency screw air compressor:
1. Constant pressure control: It can realize high-precision constant pressure control with a pressure fluctuation range of 0.01 MPa;
2. Variable frequency soft start: Eliminate the peak current when starting, avoid grid impact, avoid current impact through step-by-step speed adjustment, and improve flexibility
3. Prevent no-load: The compressor is no-load during operation, reducing ineffective energy consumption;
Permanent magnet motors use high-efficiency rare earth magnets, no loss of magnetism at 180°C, and long service life; energy saving is about 6% to 7% compared with ordinary frequency conversion motors;
It can exert the highest efficiency in a wider range and make the air compressor more energy-saving.

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor



220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor
Two stage air end
Feature:Two-stage compressor air-end
Advantage:Low compression ratio, Low temperature rising, Low air leakage
Benefit:15% energy-saving

High-efficiency Motor
Feature:IE4 permanent magnet motor/IE4 High-efficiency motor
Advantage:Motor efficiency 97%
Benefit:5% energy-saving

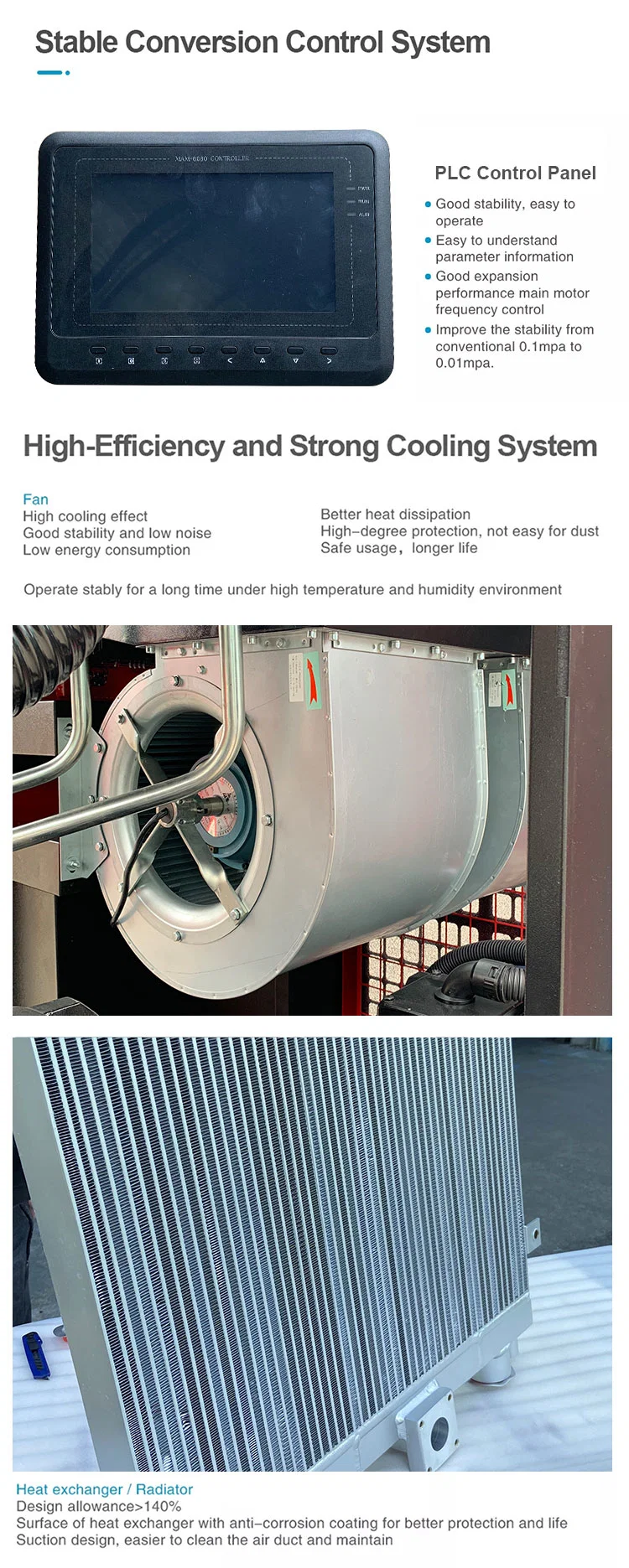

Intelligent control
Feature:VFD system
Advantage:Constant pressure output to remove pressure fluctuation and off-load, Constant temperature output at 9-~85°C, Low starting current to protect components
Benefit:15% energy-saving

Smart display screen
Feature:Intelligent control system
Advantage:10 inch monitor to show all the date
Benefit:Simple operation and touble free

Cooling fan
Feature:Large cooler system
Advantage:Axial flow Fan used for good cooling effect
Benefit:Allow ambient temperature at 52°C

Systematic Design of Oil separator
Feature:Large oil system
Advantage:Reduce internal pressure loss avoid oil, Leakage for safety
Benefit:3% energy-saving

Filter
Feature:Double filtering system
Advantage:Remove impurity from air and cleanness
Benefit:Longer life air -end and lubrication oil

Air inlet valve
Feature:High vacuum degree:700mmHg
Advantage:Large suction area, Low load energy consumption in unloaded operation,
Fast check: prevent unloading and shutdown oil injection
Benefit:Cast aluminum to avoid rust and temperature change



Product Parameters

Technical Parameters

Model Air Delivery (m3/min) Power
(kW)
Noise
(Db)
Outlet
diameter
Dimension (mm) Weight
(Kg)
0.7Mpa  0.8Mpa  1.0Mpa  1.3Mpa  L * W * H
RK30APMII 4.3 4.1 3.5 2.7 22 68 G11/2 1500x1000x1350 650
RK40APMII 6 5.9 4.7 3.9 30 68 G11/2 1500x1000x1350 700
RK50APMII 7.1 6.9 5.8 5.4 37 68 G11/2 1500x1000x1350 750
RK60APMII 10 9.5 7.8 6.8 45 72 G2 2100x1300x1650 1250
RK75APMII 13 12.5 9.2 7.5 55 76 G2 2100x1300x1650 1300
RK100APMII 15.5 15.2 12 10.2 75 76 G2 2100x1300x1650 1350
RK125APMII 19.8 19.5 15 14 90 76 DN80 2500x1650x1900 2700
RK150APMII 24 23 19.2 16 110 76 DN80 2500x1650x1900 2800
RK180APMII 27.5 27 23.7 19 132 78 DN80 2500x1650x1900 3000
RK220APMII 33 32.5 27.5 22.5 160 78 DN80 3000x1900x1950 4300
RK250APMII 39 36 32 27.5 185 78 DN80 3000x1900x1950 4400
RK275APMII 43.5 41 35.5 31.5 200 78 DN100 3600x2200x2200 5000
RK300APMII 51.5 48.3 38.5 35.5 220 82 DN100 3600x2200x2200 5500
RK350APMII 54 51 45 38 250 82 DN100 3600x2200x2200 6000
RK380APMII 60 57 50 43 280 82 DN125 4000x2300x2300 6800
RK420APMII 65 62 56 50.5 315 82 DN125 4000x2300x2300 7000
RK480APMII 75 73 64 55 355 82 DN150 4200x2200x2350 8500
RK540APMII 84 82 72 61 400 82 DN150 4200x2200x2350 9000


220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor



Packaging & Shipping

Packaging & Shipping

1.Packing Details: Plywood crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package
(for stationary screw air compressor)

2.Shipping method: by sea, by LCL/FCL or as requested
3.Delivery method: FOB, CFR, CIF and EXW etc.
4.Delivery time: in 7-15 days after receiving deposit (customized machines not included)

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

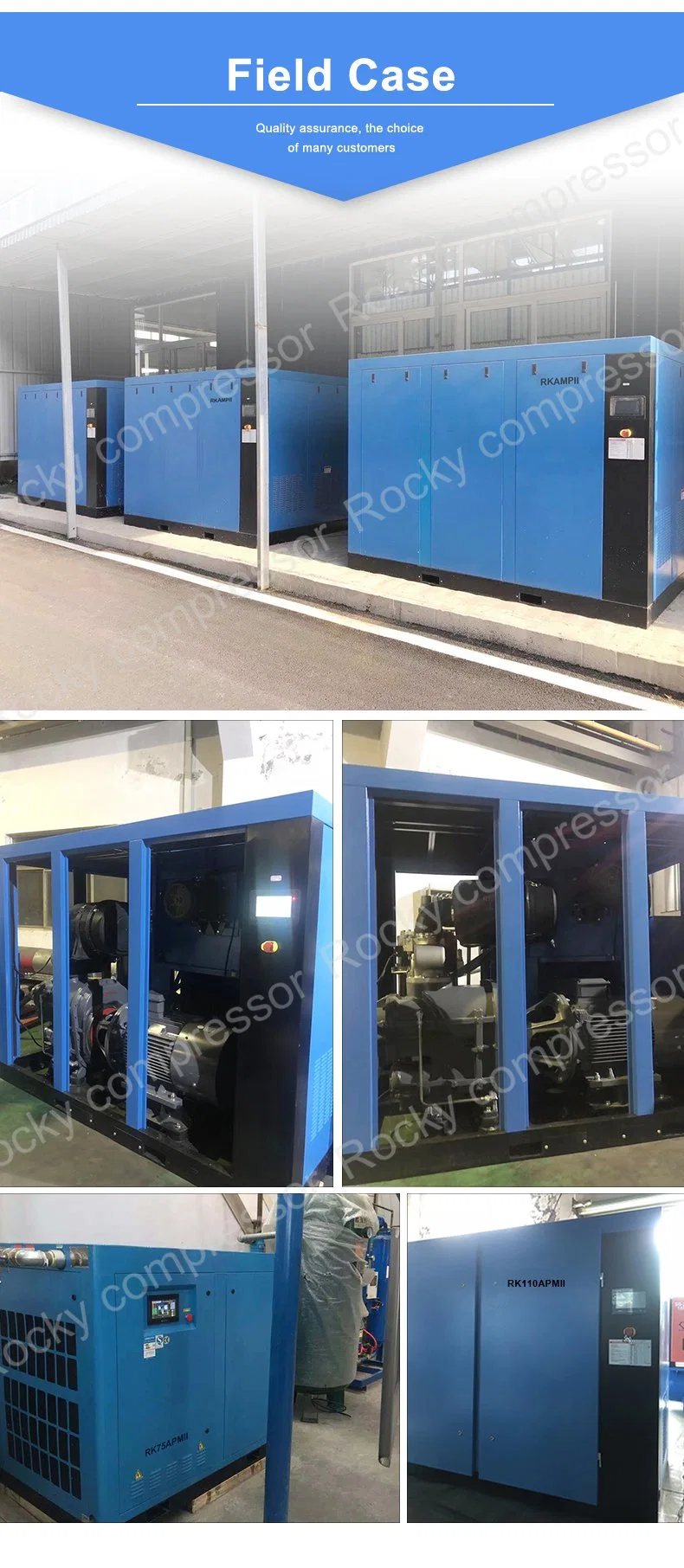

Successful cases

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

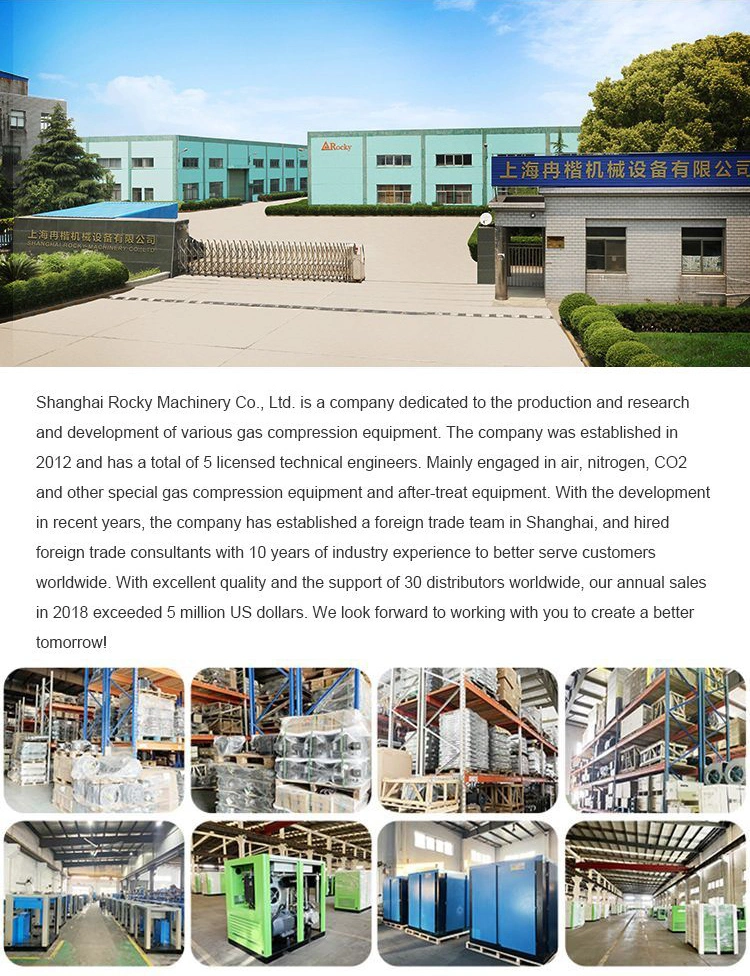

Company Profile

Shanghai Rocky Machinery Co., Ltd. is a company dedicated to the production and research and development of various gas compression equipment. The company was established in 2012 and has a total of 5 licensed technical engineers. Mainly engaged in air, nitrogen, CO2 and other special gas compression equipment and after-treat equipment. With the development in recent years, the company has established a foreign trade team in Shanghai, and hired foreign trade consultants with 10 years of industry experience to better serve customers worldwide. With excellent quality and the support of 30 distributors worldwide, our annual sales in 2018 exceeded 5 million US dollars. We look forward to working with you to create a better tomorrow!

220HP 160kw 380V/50Hz/3pH Pm VSD Two Stage Screw Type Air Compressor

After Sales Service

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in Rocky air compressor factory or working site.
5.All kinds of technical documents in different languages.

FAQ

FAQ

Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Taicang,Jiangsu,China. More than 18 years of experience in air compressor manufacturing.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
     2. Well-trained engineers available to overseas service.
     3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q8. How do you control quality ?
A: 1. The raw materials are strictly inspected
     2. Some key parts are imported from overseas
     3. Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.

Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
